What It Does for Your Building

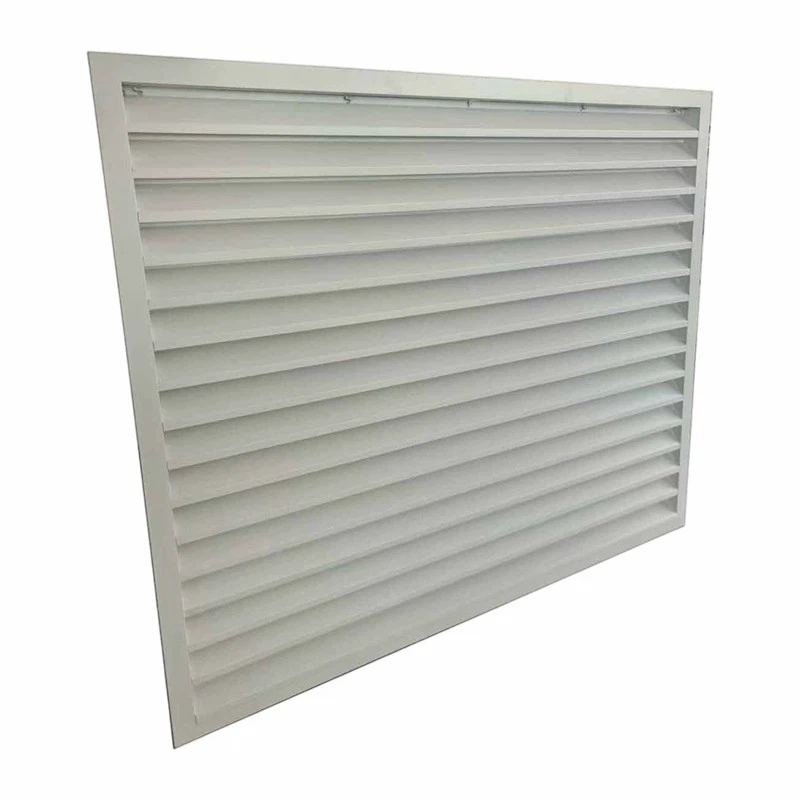

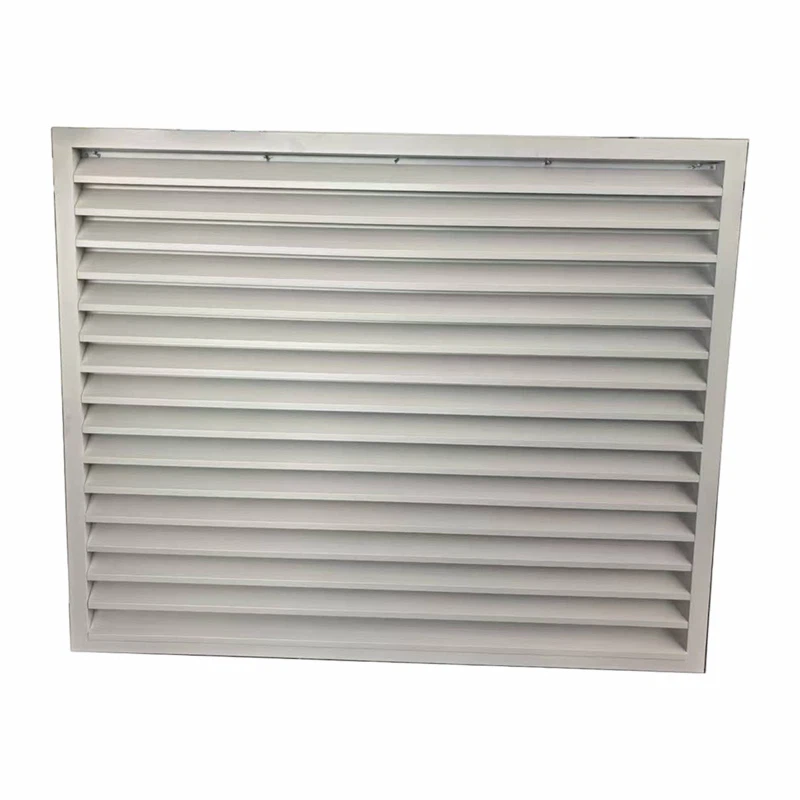

The External Louvre Vent mounts on exterior walls to allow air in or out while keeping the weather out. Its angled blades are fixed in position and specifically designed to block rain, snow, and wind-driven water. Air can still flow freely through the openings, while water droplets hit the blades and drip down instead of entering the duct. This vent serves as the first line of defense for your ventilation system against outdoor elements.
Why It Is Built Tough
The external louvre vent is chosen because it withstands sun, rain, and temperature changes without rusting or breaking. It is made from heavy aluminum or galvanized steel with protective coatings, ensuring many years of outdoor use with no painting or upkeep required. The vent also prevents birds, leaves, and large insects from entering your ductwork. Its fixed blades cannot be adjusted, so if you need to control airflow volume, a separate damper must be added behind it inside the duct.
Where You Must Use It
Building codes often require an external louvre vent on any opening to the outdoors. You will see it on fresh air intakes for HVAC systems to protect equipment from water damage. It is also used on exhaust openings for bathrooms, stairwells, and equipment rooms. Underground parking garages use it for supply and exhaust shafts at street level. Power generators, cooling towers, and pump rooms all need this vent to stay ventilated but dry. It is the standard choice for any penetration through the building envelope.
|
Parameter |
Specification |
|
Primary Function |
Rain and weather protection |
|
Blade Type |
Fixed, angled for water shedding |
|
Material |
Heavy-gauge aluminum or galvanized steel |
|
Finish |
Mill, anodized, or powder-coated |
|
Bird Screen Option |
Removable wire mesh behind blades |
|
Airflow Control |
Not adjustable (requires separate damper) |
|
Mounting |
Flanged for wall or roof curb |
